Aquaclear AC110 Ultimate Filtration Kit by inTank & Oceanbox Designs

From: $165.99

(1 customer review)

Ultra Slim Mini 50W Heater w/External Controller

Fits inside filter. Hidden from view.

Nano Aquarium Auto Top Off System MT-360P

Auto top-off evaporation.

Ship within 2-5 business days.

Turn your AC110 into a powerful HOB filter by just dropping in this Aquaclear AC110 Ultimate Filtration Kit by inTank & Oceanbox Designs!

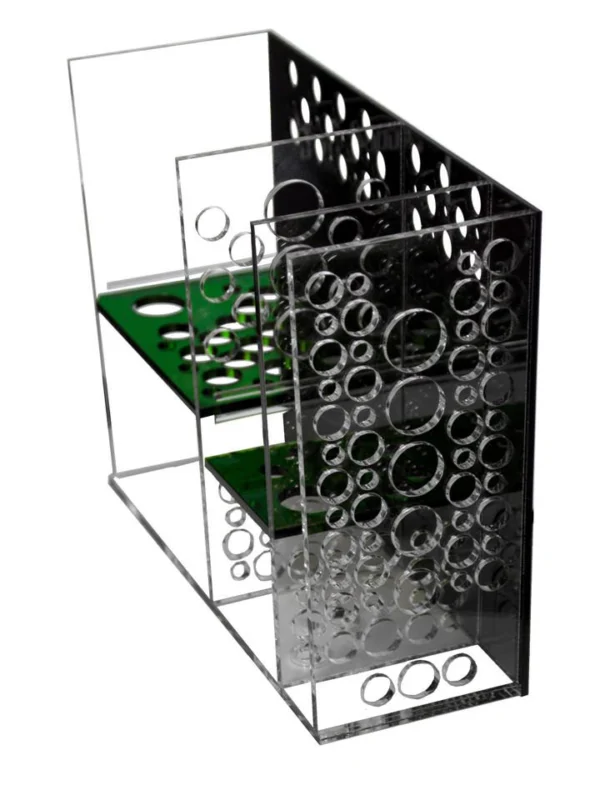

inTank™ Aquaclear AC110 Media Basket

The Aquaclear 110 Media Basket features a large amount of space for various kinds of media. It can even accommodate a protein skimmer with the shelf removed. It forces water through each chamber with it's specially designed hole pattern. Water is forced through filter floss to create a crystal clear aquarium that is detritus free. It forces water so well that media can actually tumble in its bag! Can accommodate (2) 100W Hydor heaters to bring them out of the aquarium. One shelf on the unit is removable so you can create a very large chamber for media or macro algae.

Features:

  • Filter floss holder, can change floss without removing basket
  • 4 media shelves, one is removable
  • Huge amount of space
  • Easy to change media
  • Can fit (2) Hydor 100W heaters
  • Black front to block media from view of tank

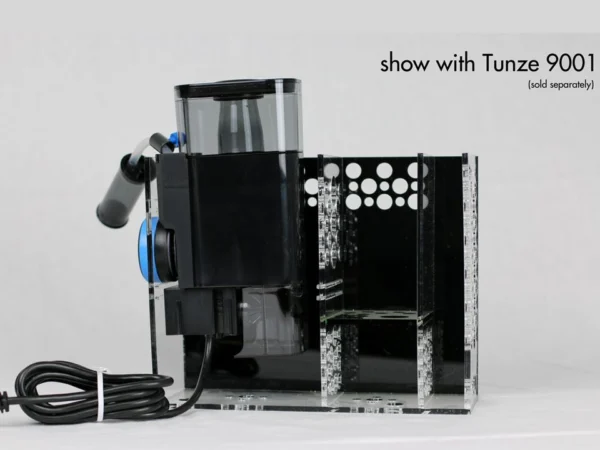

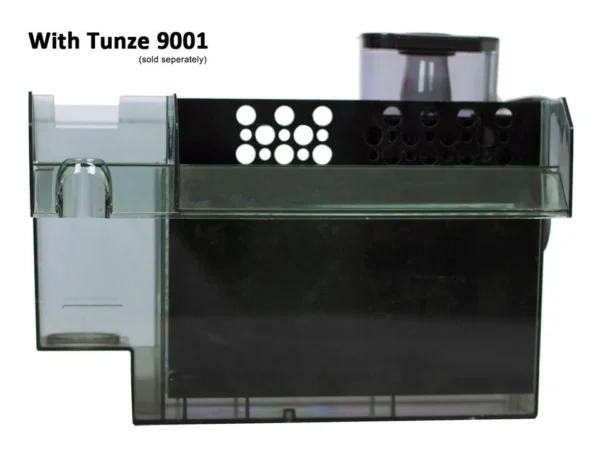

  • Fits Tunze 9001 with shelf removed
  • Made in the USA!

Install Notes:

  • You must turn off the filter before inserting or removing the basket.
  • Filter floss can be changed without turning the filter off but it is recommended to keep detritus out of the aquarium.

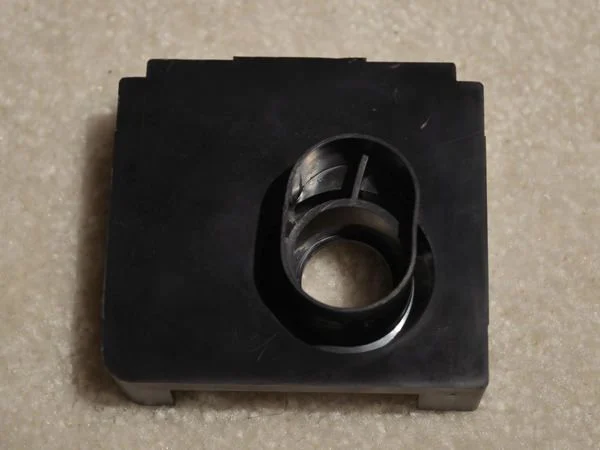

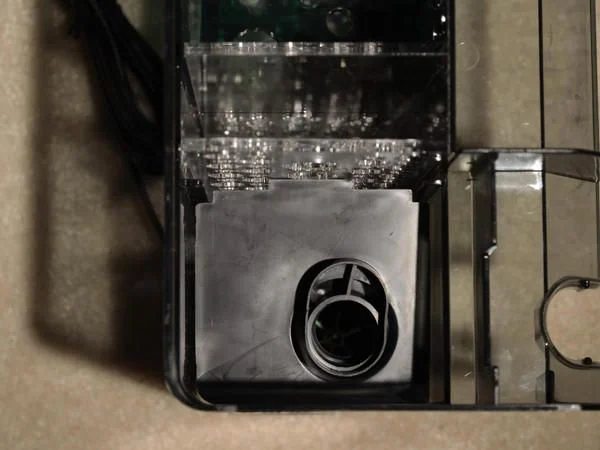

  • There is a tab on the base plate that the intake tube rests on. This must be removed with a razor or similar tool for the basket to fit into the filter (see pictures below).

Cutting of the Tab:

FAQ:

Q: Water is flowing over the intake tube, is this normal?

A: Yes! The Media Basket forces water through media, not just up over the top like with the stock setup. It tracks water through a dedicated path which puts needed backpressure on the incoming water. This backpressure allows a certain amount of incoming water into the basket at a time. This amount depends on the type and size of media you choose to put into the basket. The filter has a built in overflow around the intake tube and water spilling over it is nothing to worry about. The filter is still circulating 100% of the water through the basket very quickly.

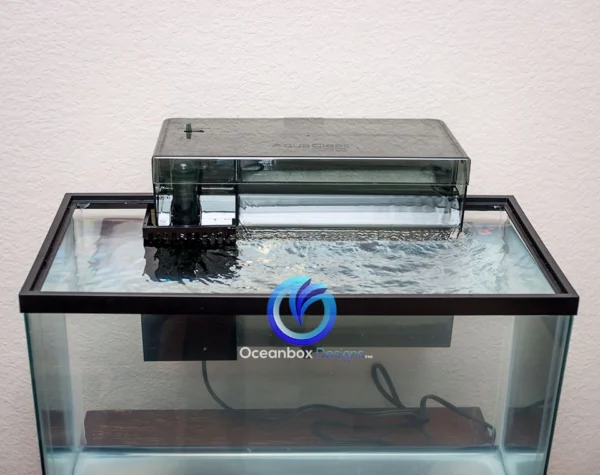

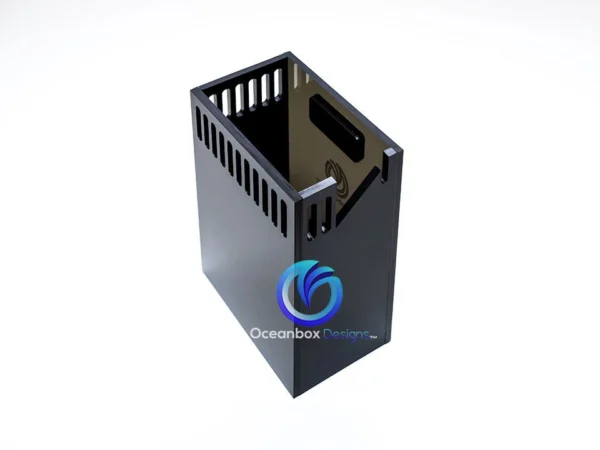

Oceanbox Designs® Aquaclear AC110 Magnetic Surface Skimmer

Oceanbox Designs™ Aquaclear AC110 Magnetic Surface Skimmer allows surface scum to be removed via surface skimming and also hide the filter intake which is usually sore eyes in your beautiful reef tank. Our innovative Embedded Magnetic Mount System™ are 100% waterproof and rust-proof on both tank side (wet) and dry side. The enclosed super strong magnets ensure that the Surface Skimmer hold securely in place once set. Now we can take HOB filtration to the next level, keep your tank clean and your salt critters happy.

The Aquaclear 110 filter with an Overflow Box (Surface Skimmer) is great way to quickly set up a small pico/nano reef or a frag tank for which the tank can be easily put together and taken apart at will for frag swap, show, etc. Other viable setup including QT or hospital tanks are also great options to consider.

Features:

  • Remove Surface Scum (Organic Residue/Oil) Via Surface Skimming.
  • Strong Waterproof Magnets Mount (Wet/Dry Side).
  • Simple Drop-In Installation.
  • Hide Filter Intake Tube From View.
  • Adjustable Height To Fine Tune Overflow Level.
  • Slit Cut For Temperature Probe Mounting.
  • CNC Laser Cut Premium Craftsmanship.
  • Hand-Crafted In The Great State Of Texas, USA.

Filter Compatibility:

  • Aquaclear AC110

Tank Compatibility:

  • Rimmed Or Rimless Tanks
  • Magnets Hold Through Glass Thickness: <=8mm (5/16 in)

Requirement:

  • As with any overflow box style setup, an Auto-Top-Off system (sold separately) is essential to maintaining a stable water level inside the overflow box. Evaporation causes water level inside your overflow box to drop and will start gurgling when it lose siphon, the ATO prevents this by automatically top off with fresh water. You can opt to manually topping off every few hours but an ATO makes life so much easier.

⚠️ MAGNETS SAFETY

4.0
Based on 1 review
5 star
0%
4 star
100
100%
3 star
0%
2 star
0%
1 star
0%
1-1 of 1 review
  1. Very well constructed, works very well on rimless tanks, not on the tanks with the black rims because the magnets will hit the top of the plastic rim and won’t let the box go all they way up, but you can remove the top 2 magnets to allow the box to go all the way up and close the gap with filter lip easy fix. easy way to improve the box is to move the top magnet strip down.
